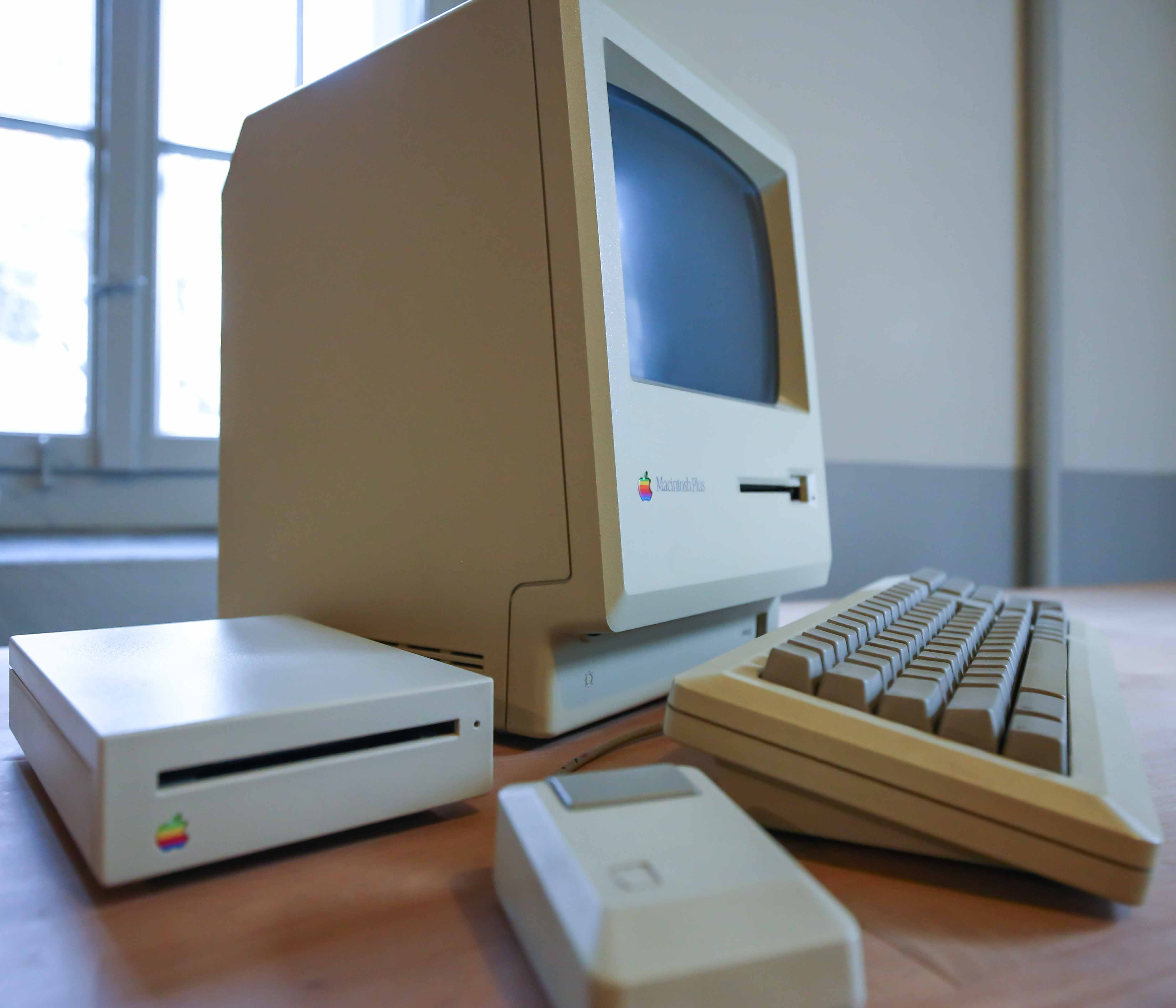

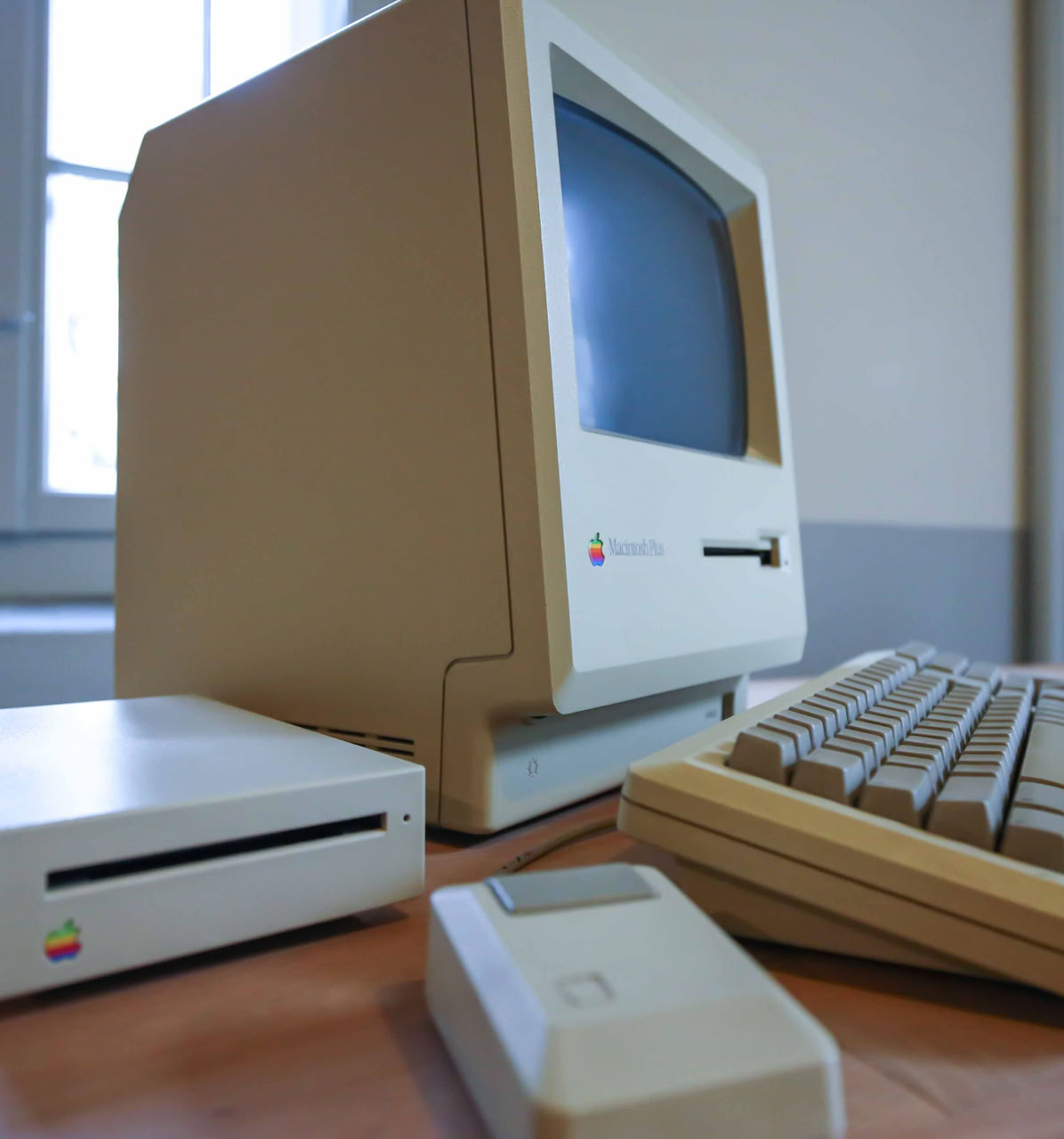

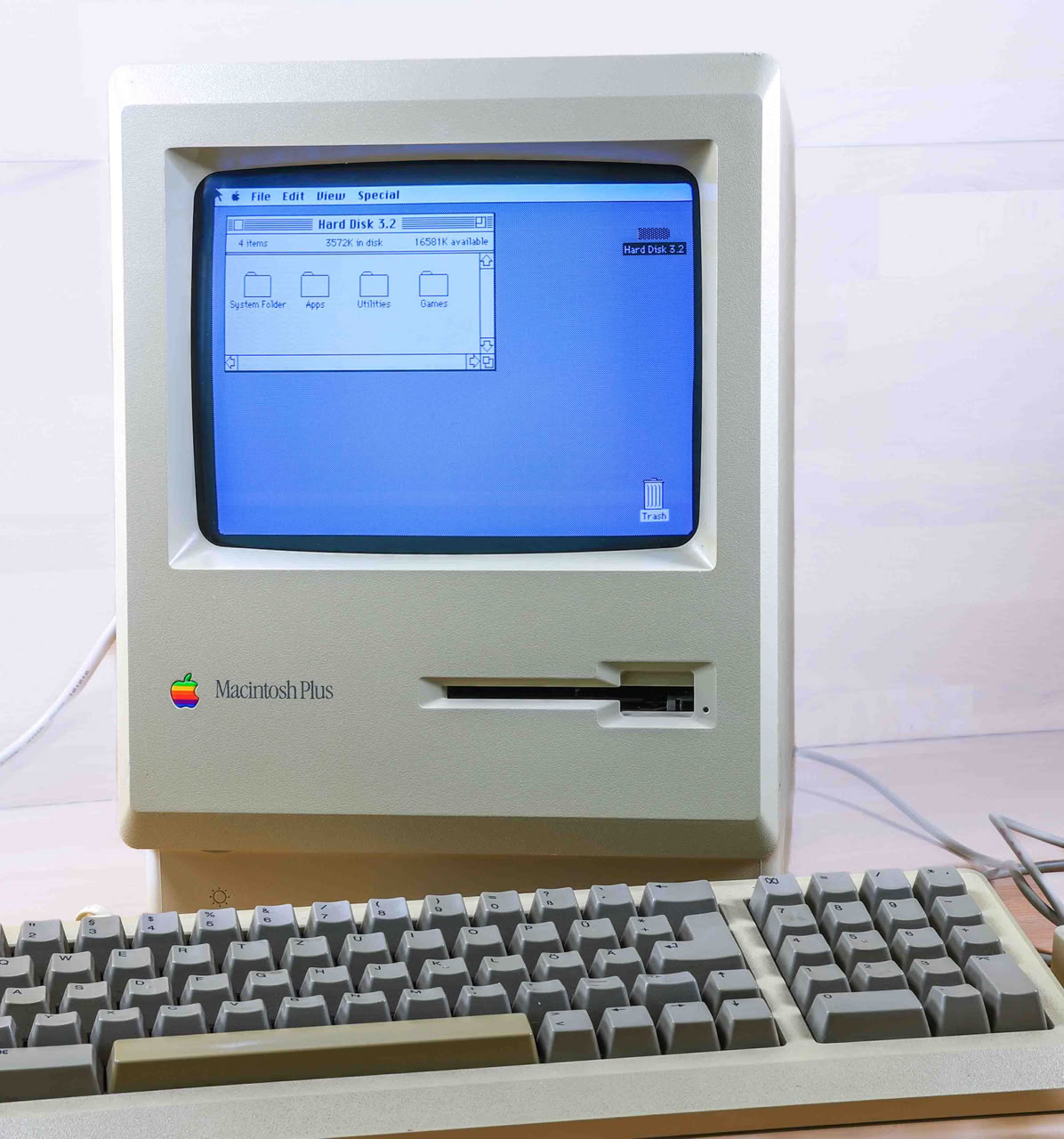

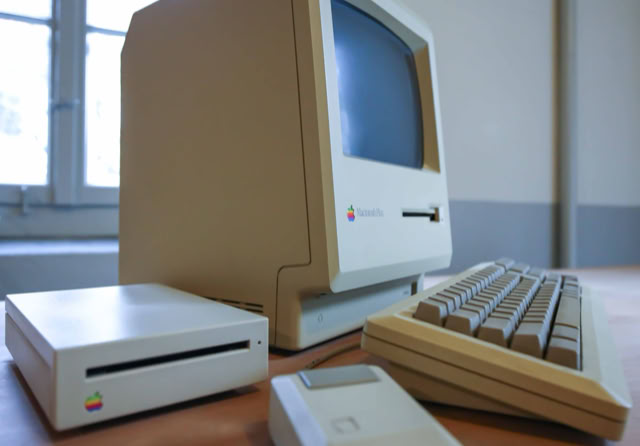

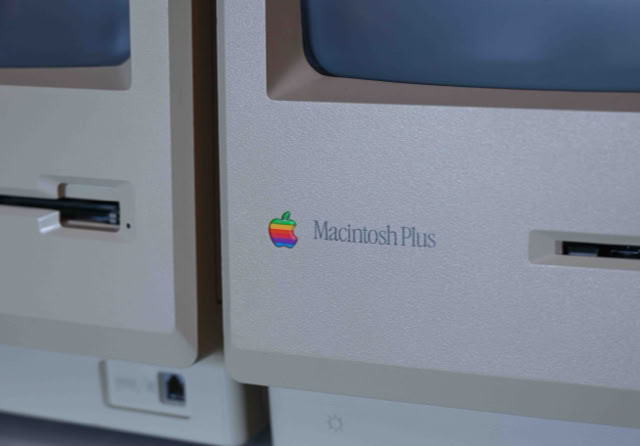

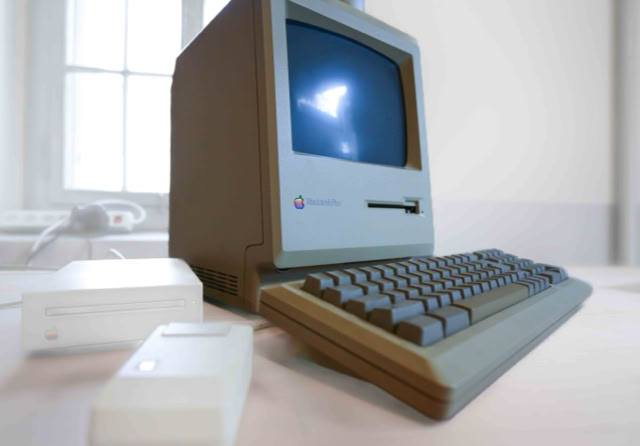

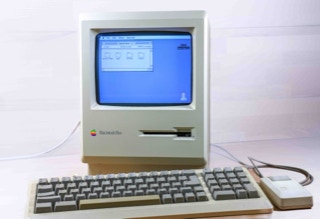

macintosh plus
Minimum OS: System 3.0
Maximum OS: 7.5.5
Introduced: January 1986
Terminated: October 1990
Processor
CPU: Motorola MC68000
CPU Speed: 8 MHz
FPU: none
Bus Speed: 8 MHz
Register Width: 32-bit
Data Bus Width: 16-bit
Address Bus Width: 32-bit
ROM: 128 kB
RAM Type: 30 pin SIMM
Minimum RAM Speed: 150 ns
Onboard RAM: 0 MB
RAM slots: 4
Maximum RAM: 4 MB
Video
Monitor: 9" built-in
Max Resolution: 1 bit 512x342
Storage
Floppy Drive: 3.5" 800 kB

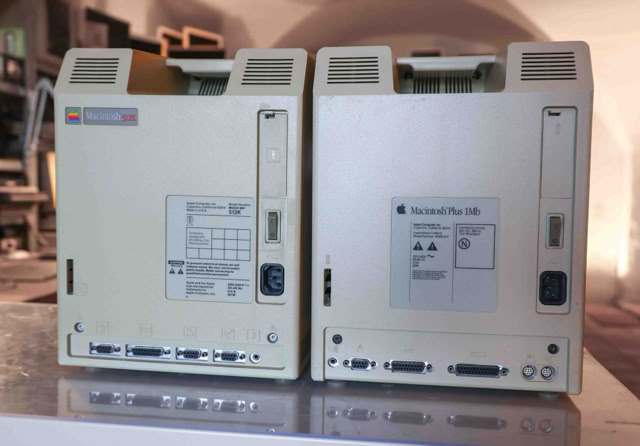

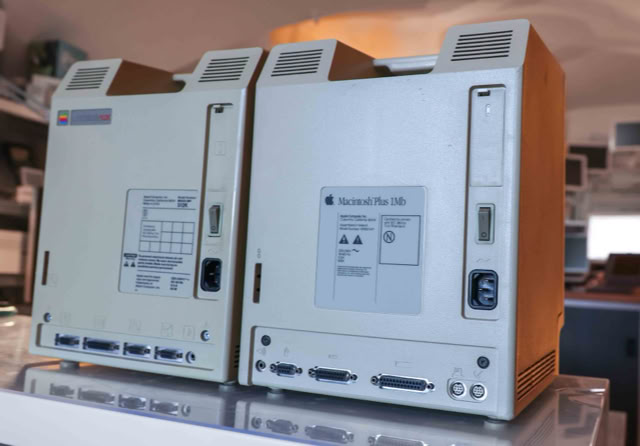

Input/Output
Floppy: DB-19
Joystick/Mouse: DE-9
Serial: 2 DE-9
SCSI: DB-25
Audio Out: 8-bit mono mini
Speaker: 8-bit mono
